Alternative-facts aside, Oracle made some updates over the past few winter months to DRM, EPM, and the cloud. Here’s a quick round-up of the news, fun new features, and resources to get more information.
DRM 11.1.2.4.343 Patch

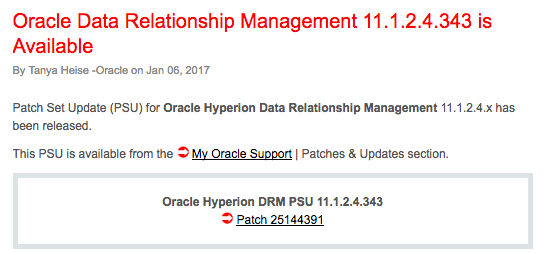

Oracle released the .343 patch on January 6, with just a few new features in the release. The patch does require an 11.1.2.4 minimum installation, under patch number 25144391 on Oracle Support.
This patch’s only New Features are two new properties available for use with the RequestItemDetailObject when using dynamic scripting (JavaScript) in workflow tasks:
- HasCalcValue
- CalcValue
Dynamic scripting allows for more mobility within DRM than the inherent DRM formula language. When working through a workflow request item using dynamic scripting, you are now able to use 1) if there is a property with a calculated value, and 2) what the calculated value is.
This patch New Features list is pretty small, but if you are not yet on the .341 or .342 patch of DRM which includes many DRG fixes, you might as well go up to .343.
Also a number of bug fixes. Includes DRG/workflow updates, export updates, and automation/insertion issues when running batches or action scripts.
Defect Number | Defect Fixed |
15863761 | Transaction audit filtering is case sensitive. |
19921447 | RemoveProp on a global, defined, ListGroup property does not work manually. |
20456656 | Not able to get appropriate response for API call StartHierExportByName(). |
20779105 | For Associated Nodes property, the Select Nodes area of dialog is moving over the previous selection. |
21627992 | Saving copied version gets error message: The Insert statement conflicted with the Foreign Key constraint. |
23124986 | Request Age on worklist resets to 0 after request committed/rejected. |
23508088 | Shared node children not displaying property correctly. |
23556445 | DRM data format not using system region format selected. |
23578579 | DRM memory footprint continues to rise when saving versions. |
23594462 | Error when name of View From member gets changed. |
23710595 | Action script does not load quoted values correctly. |
24289544 | Sort order and sort limbs first not working correctly. |
24332592 | Workflow item in details not showing correctly: showing default in Current Value but showing current value in New Value. |
24506101 | Session not terminated when running books via batch. |
24573185,24683570 | Export performance slow in 330 release. |
24574224 | Error “Node cannot be added as a child of parent node” when adding sibling to shared node. |
24660412 | Validation error of missing child dependency when JavaScript has property reference. |
24663618 | Version copy being attempted on version that has not been loaded. |
24674558 | Load status for large version never gets updated to Loading from Initialized. |
24737962 | Unable to expand certain shared node hierarchy. |
24791069 | DRG does not update local properties on shared nodes. |
24810108 | Running export books and compare exports will flip previous version with current version. |
24826257 | Books created at the API do not allow configuration of CombinedFileCodePage. |
24836960 | Split workflow task getting stuck on skipped stage. |
24897933 | Copy option not working correctly in IE11. |
24906620 | Node Access Group rights not applied correctly for Access Manager role. |
24958942 | Property delete causes timeout due to dependency checking. |
25192124 | Workflow task that calculates name based on derived property requires extra step. |
FDMEE Patch11.1.2.4.200
Oracle released the .210 patch to FDMEE in late December 2016, which included tons of new features and functionality. Before installing this patch, FDMEE should be at least 11.1.2.4.000 (or greater). On Oracle support, search for bug #23041471 to get the readme and download links.
Notable features and improvements:
- Text-based data loads for all data types
- Loading multi-column numeric data
- This functionality was available in the16.10 update of Data Management Cloud Service first, by the way.
- Loading multi-period in single file
- The import format now supports definition for periods, year, and the period number
- Support for FCCS and Fusion GL Fusion Cloud Balances
- Covers integration both to and from FCCS and GL Fusion Cloud
- Helps synchronize data from on-prem GLs to FCCS, or from GL Fusion Cloud to other applications (both on-prem and cloud, like PBCS)
- Executing custom scripts from command line
Francisco Amores has done a wonderful (and more timely) job recapping all the features and functionality of this patch in his blog Fishing with FDMEE – check out his post here.
Full list of new features:
- Loading Multi-Column Numeric Data
- Loading Multi-Period in a Single File
- Hybrid Support for Financial Consolidation and Close Cloud and Fusion GL Cloud Balances
- Limit Number of Parallel Jobs
- Executing FDMEE Custom Scripts from a Command Line
- POV Lock/Unlock Enhancement
- Support Skip Rows for Delimited Files
- Using a ~ (Tilde) As a Delimiter
- Support for Selecting Delimiter for Mapping Export
- Integrating SAP HANA Based Data Warehouse
There was also a long list of defects (a whopping 50 bugs!) that were fixed in this patch, since there hasn’t been a patch release since April 2016. There were several updates to adapters and integration methods with EBS, JDE, PeopleSoft, and Cloud, as well as several updates to defects with mapping functionality.
Defect Number | Defect Fixed | ||
25191503 | An error occurs in the validation step when mappings are missing. | ||
25086656 | Support the Skip Row feature for delimited files. | ||
25073281 | Uploading the mapping file in merge mode takes 7 hours. | ||
25070982 | Locking all (POV) locations, periods and categories is required; documentation shows step as optional. | ||
25058979 | The journal description is not loaded correctly in Hyperion Financial Management. | ||
24831061 | Intersection Check Report jobs fail. | ||
24790410 | Write-back to PeopleSoft Commitment Control fails with an ORA-00904: “GLI”.”LOADID”: INVALID IDENTIFIER. | ||
24719210 | Multi-period loads between EPM sources fail when the archive mode is set to “Move.” | ||
24704033 | Target application properties are not created for Public Sector Planning. | ||
24696709 | Add a method to drill back to EBS using data synchronization. | ||
24660228 | The file extension is missing from an Open Source Document in the Data Load Workbench. | ||
24615582 | The application takes a long time to export maps to Excel resulting in a time-out error. | ||
24581883 | EBS write-back produces multiple lines for a multi-period load. | ||
24581817 | Open batch replace load tag in export mode for Essbase does not work. | ||
24507793 | The open batch process does not complete before another process starts in serial mode. | ||
24481231 | Unable to export data from FDMEE in an Oracle Managed Cloud Service to Planning in an Oracle Public Cloud. | ||
24409145 | Unable to save source filters in the data load rule for data synchronization. | ||
24398268 | After Batch script executes before batch has completed in parallel mode. | ||
24346113 | The name and type of the source system do not show in Chinese. | ||
24334010 | Cannot restrict number of batch loads. | ||
23749615 | (Mapping) Member Selector screen does refresh properly when dimensions are changed. | ||
23741243 | Multi-dimension mapping import removes [ ] (open/closed square brackets) from the dimension value. | ||
23712261 | A data synchronization import format error occurs when you add a second source column to the target dimension. | ||
23704903 | Batch jobs are deleted when “Maintain Process Tables” job is launched. | ||
23608036 | JDE adapter hangs the FDMEE database. | ||
23601294 | Data protection does not work correctly when entities have the same string in the entity name. | ||
23570299 | Users without access privileges are able to fix mappings. | ||
23570139 | Map Monitor reports do not save all changes that are made in a single session. | ||
23569307 | Increase length of dimension members to 80 characters when loading data. | ||
23534813 | Target member with trailing spaces fails during validation but loads correctly. | ||
23521228 | Duplicate data import and export steps occur in an open batch when Archive Mode is enabled. | ||
23332225 | Export mode always defaults to “Replace” regardless of the target option setting. | ||
23299982 | Unable to unlock periods when selecting the POV. | ||
23244868
|
FDMEE uses a batch file and not the shell script for the Data Relationship Management (DRM)/FDMEE integration on LINUX. | ||
23236688 | Check report fails when a “-1” parameter is used to return the prior year. | ||
23153744 | When exporting mappings into Excel, the export works correctly, but no output is written to the Excel file. | ||
23100637 | Support Replace by Security with open batch. | ||
23094407 | When the Global POV is set to “yes,” users receive an ADF error when executing the data load rule. | ||
23031907 | In Life Cycle Management, when the import format has concatenated fields, then the sorted order of the concatenated fields is incorrect in the target environment. | ||
23003251 | Users can duplicate explicit data load mappings. | ||
22996594 | Data file generated by FDMEE custom application does not have correct order. | ||
22975695 | Import from EBS fails with a SQLSYNTAXERROREXCEPTION: INVALID COLUMN NAME ‘SEGMENT1’ error. | ||
22747940 | Check report shows wrong results. | ||
22685686 | When concatenating JDE accounts and the sub-account is null, no data is displayed for the source account. | ||
22588695 | Import script does not execute the last field when the field is blank. | ||
22219833 | Variance reports show zero regardless of the selected time period. | ||
21968085 | Unable to change column delimiter in import and export mapping tables. | ||
21928674 | Add support for Data View metadata tag (DV) in the Excel Trial Balance. | ||
21910911 | The Hyperion Financial Management (HFM) export file shows data for multiple periods in alphabetic order instead of period order. | ||
21746465 | Unable to load the date field into FDMEE. | ||
21683139 | Need to export string data to Planning application using FDMEE. | ||
21622537 | An intermittent failure to show goldfish occurs after the Import, Validate, or Export steps have been executed successfully in the Data Load Workbench. | ||
21611707 | In some cases “Recalculate” does not run when the data load rule is executed as scheduled. | ||
20969139 | When viewing validation errors in the Data Load Workbench, the full set of errors are not displayed in some cases. | ||
20892186 | Validation errors tab shows one dimension at a time. | ||
20583965 | Alternate hierarchies for local dimensions are not marked as shared. | ||
20512084 | In multi-dimensional mapping, square brackets are removed for special account values such as [ICP NONE] and [None]. | ||
19304596 | Add ability to move the source system information in FDMEE using LifeCycle Management. | ||
18550239 | The text box for the target value in member mappings does not expand when the column width is increased. |
Mini EPM Cloud Updates
There aren’t been any radical updates to any cloud applications so far in January 2017 (17.01 release), but Oracle is still communicating the stoppage of support of the Financial Reporting Studio Desktop Client, which is currently scheduled for May 2017, which includes distribution.
“Oracle will not distribute Financial Reporting Studio desktop client after May 2017.”
Even with this dire news for Financial Reporting Studio desktop client, they did make a few defect fixes in December 2016 with patch 11.1.2.4.704. It’s just an in-place install, so you can install it over your current instance to get the following updates:
Defect Number | Defect Fixed |
20888991 | Select Financial Reporting Preferences dialog in Polish result in error. |
22456928 | ‘ScheduedBatchCacheTime’ preference is not working properly. |
23634461 | Reports with Member function cause a performance loss. |
23641337 | Permissions not inherited from Snapshot Books and Reports. |
24336995 | Missing first column when using sub heading. |
24400587 | Ability to insert space (blank lines) before and/or after each line in TOC template file. |
24442067 | Book have extra page number compare to previous Financial Reporting version. |
24476719 | Removed Fonts from Client machine still shows in Financial Reporting Studio. |
24595348 | Allow Financial Reporting Web Studio the ability to format rows and/or columns and not lose any prior formatting. |
24608482 | Dimensions name with a colon character result in Books POV missing. |
24608683 | Dimensions name with a colon character cannot be Books Export/Import in Workspace |
24615697 | Member names with a colon character results in Books error. |
24719050 | PDF output does not include all members from the Page Dimension when Page Dimension is set to print additional reports to the Same Page. |
24745886 | Chart component displays incorrectly in HTML Preview. |
24749955 | Graph is not displaying negative numbers as negative(below zero line). |
24792831 | Long row may not work properly for PDF Preview. |
24802761 | After updating to 703, Charts in Financial Reporting Studio show as blank boxes. |
24925353 | Conditional Formatting may not working for the Essbase when using for Essbase shared members. |
24942882 | The FRCONFIG value, ExportFolders, cannot be changed. |
25027711 | Batch Bursting fails when using pipe symbol in member name. |
25078304 | Reports with large text members failed to render in PDF format. |
25078500 | Condition Suppression failed on Essbase hierarchy with level zero shared Member. |
25109398 | When using Planning data source, if string is large integer, Export to Excel may output as Date type. |
25167114 | Bottom border is not displaying in reports. |
25177305 | Original defect 25059253: HTML view of book not loads reports. |
However, the Financial Reporting Studio Web Client has made significant improvements in features and functionality, and should have most of the functionality of the legacy desktop client at this point. If you are starting your reports build, my suggestion would be to build them in the Web Client.
I was expecting to see the functionality from the PBCS 16.12 update (that potentially caused SmartView connectivity issues) that was not released to Production, but haven’t seen any updates on this so far for January 2017.
Hi,
My question is not specific to above post , But it is regarding DRG export.
Could please suggest me that how we are going to export the DRG request.
DRG request like
1. How many DRG request came into the system in the current month and what are they.
2.By whom it was submitted and where the members/nodes were added.
3.How many of them are processed and how many are rejected.
Hi,
You can only view DRG requests that have completed a workflow, and are not inflight requests. This is possible thru the Audit feature, and selecting the Audit Type dropdown to “Requests”. There are many filters you can select here, version, hierarchy, by date, created by & updated by user, etc. to show which requests have transitioned into data updates. You can download the results in Excel, Text, PDF, and CSV format.
Unfortunately, things that are not yet committed or rejected are not available, the Audit screen even has this info message: “Requests available in the Worklist are not recorded in the Request History.”
Administrators can see the list of requests that are in-flight in their “Worklist: All” view. But this is not easily extracted thru the interface, like Script results or Hierarchies.
Hope this helps!
-Kate (Hyperion Barbie)
Thanks a lot Kate .
It helps a lot.. 🙂
Hi Kate ,
Coming back to first question.
But those can be exported from the database right ?
Regards
Dilip
Hi Kate ,
I am back again with question 🙂
I want to track all the changes/updates which are happened in the month . I know like we can check the changes using “As of version”. But I want to track using Export functionality so that I can run it every month to track all my changes which happen in the last month. Is their any way to do it ?
Regards
Dilip
Hi,
I think it depends on how you are doing versioning – are you doing a monthly copy-forward? Or copying back from a master version? if you are copying forward, I would recommend using the Audit functionality to get all changes (or selected Actions using filtering) and export all from the monthly version. It should layer all transactions/changes from the baseline to the current working version.
If you are copying backwards and have a master version, this is a little more tricky. You’d have to specify exactly the start time and end time to capture the changes on the master version, since the baseline is from when the master version was created, likely several months ago.
You can do these manually thru the interface fairly easily, which I recommend you do each month at copy version time, and save for audit purposes. You can also create a Transaction Log export (Add new export, select Log Exports > Transaction Log). And it allows the same filtering as the Audit feature. If you do a monthly copy process and copy forward, and set your version variables correctly, this export can be saved and run via the batch client on a monthly schedule without any manual changes or maintenance.
Hope this helps,
-Kate, Hyperion Barbie
Hi Kate,
Hope you are doing great..
Kate could you please guide me or share your inputs , in how to configure the DRM with HFM and Planning.
In how many ways we can migrate the data from DRM to Planning and HFM.
Please share your inputs.
Hi Dilip,
Are you using classic or EPMA for Planning/HFM?
If EPMA, I would use either an ADS file or create an interface table for EPMA to pull the updates from DRM. Your DRM exports would create an ADS file, or push the data directly into the table for EPMA to pick up.
You can then create the batch scripts to export the data from DRM, and then run EPMA to pull in the updates and then re-deploy both Planning & HFM.
If classic, you can use Outline Load Utility formatted files for Planning, and create an .APP file for HFM. The HFM upload of the .APP would be done by an administrator.
Hope this helps,
-Kate (HyperionBarbie)
Hi Kate,
Thanks a lot for the replay .Can we use FDMEE as the interface instead of tables ?.
If Yes could you please guide me or if you have any document for it . Could you please share it to me please.
